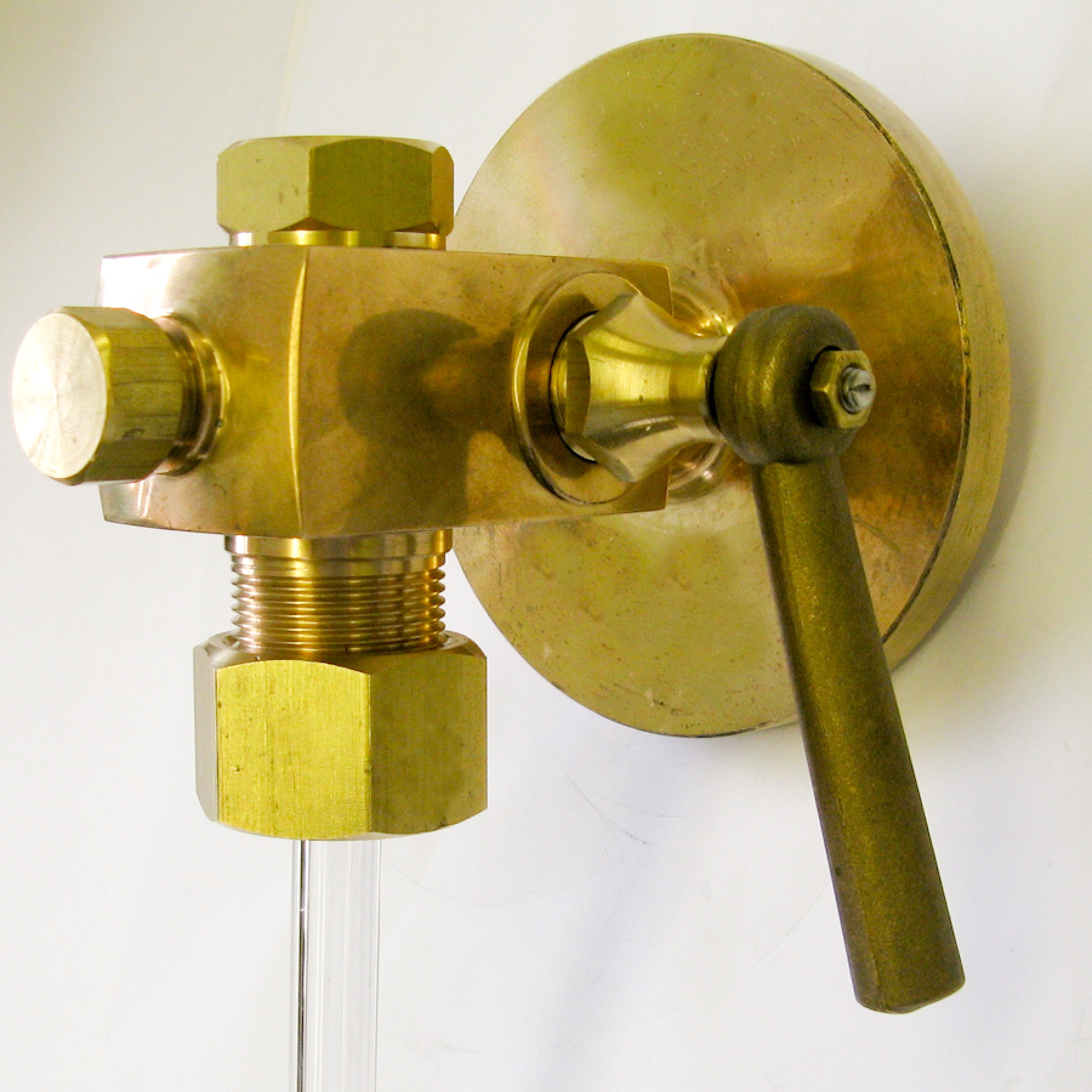

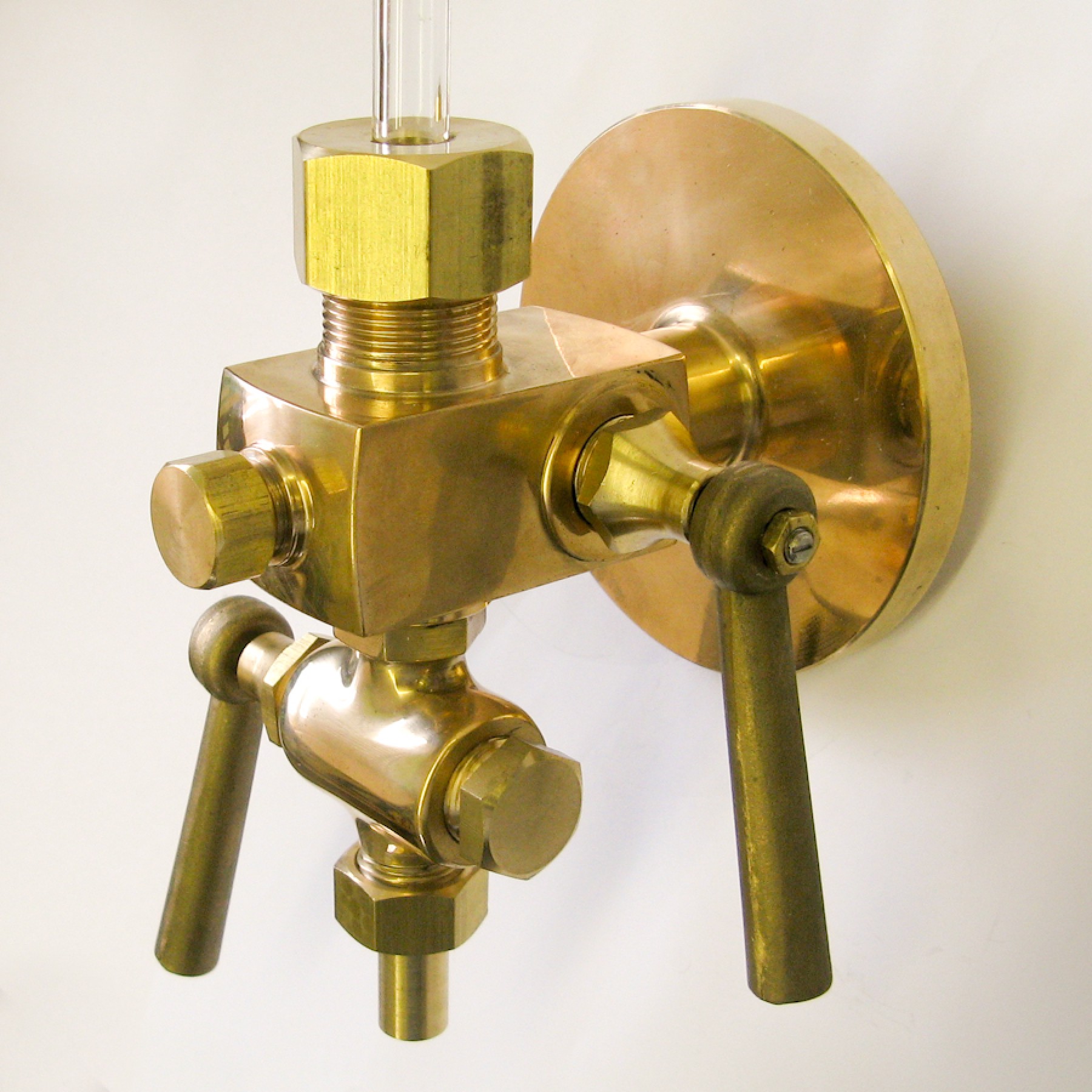

Water Gauge Set Fig 52 3/4" x 4 1/2" Flanged (0052)

SKU: 07A052
Excl. VAT: £479.75
Incl. VAT: £575.70

WATER GAUGE 52 3/4" x 4 1/2" flanged (0052)

For steam working pressures up to 250lbs/in2  (17.2bar) and temperatures up to 500F (260 C).
These gauges are fitted with sleeves which can be adjusted by means of packing nuts as water
necessitates and provide easy and efficient maintenance. An automatic shut-off ball valve in the
water arm to prevent the escape of water is available on request. An automatic shut off valve in
the steam arm is also available, if required. Steam and water arms can be handed right or left to suit
installation and drilled to appropriate standards

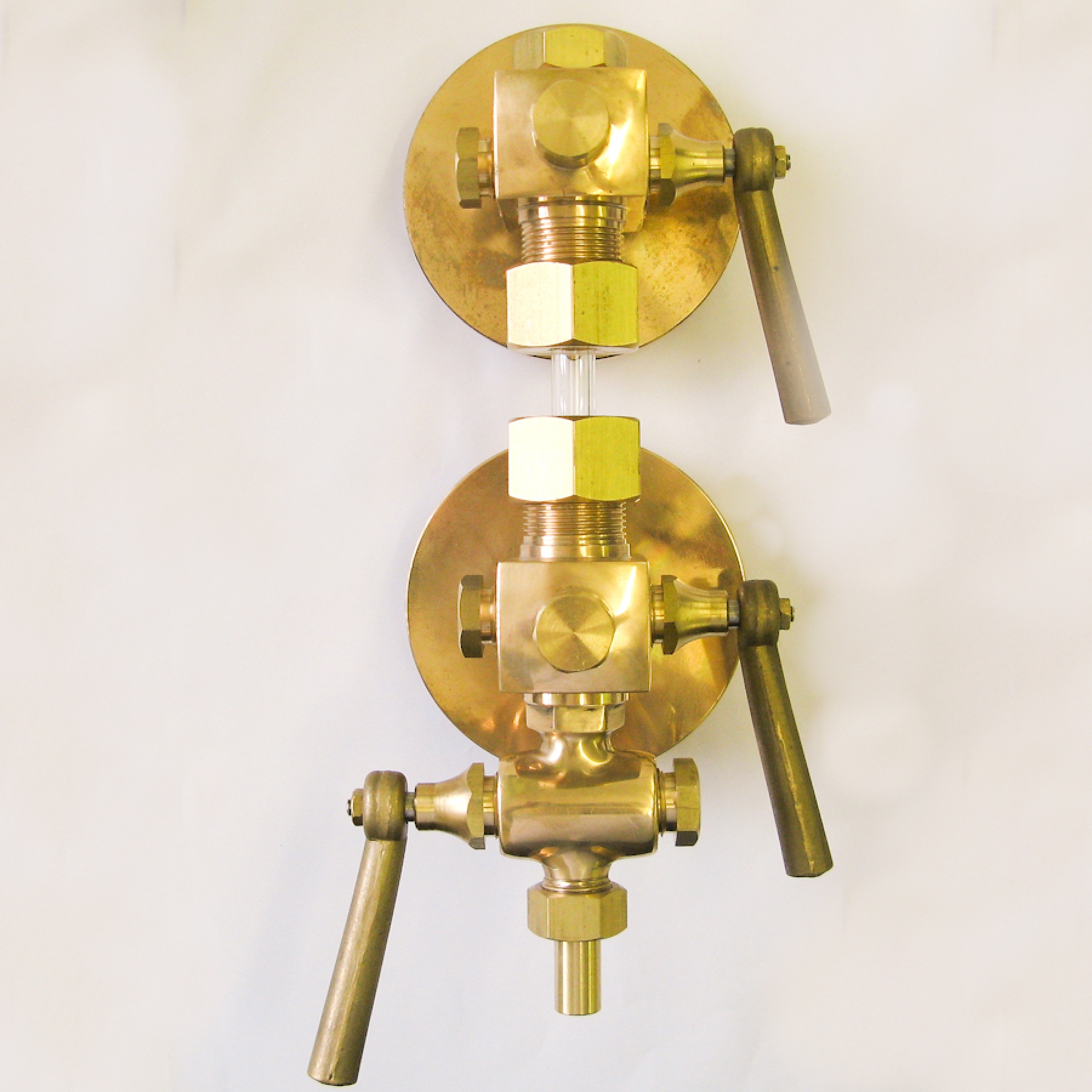

Set = Top, Bottom and Drain Cock. All water gauges can be handed left or right.

Flange 4 1/2” 115mm

Polished.  5.44KG per set
A = 83
C = 62
Flange 4 1/2” 115mm
Glass 3/4”
Sleeves AB12
Cones No 75

Protector mount size 1 3/4"
